Vortex Mixer
JSVX-7R Vortex Mixer is designed to mix small vials, micro-tubes or tubes of liquid. Variable orbital speed up to max. 3,300 rpm transmitted to the liquid inside and a vortex is created and efficiently mix samples. Both Cup-Head and 3 inch Rubber Platform included to be used for various shape and size of containers.
 |
download-catalog-jsvx-7r-vortex-mixer.pdf |
Specifications
|
Shaking Motion |
: Orbital, 4 mm Stroke |
|
Speed Range |
: 3,300 rpm |
|
Control |
: Stepless Analog Variable Speed Control |
|
|
: 3 Position Multi Function Switch [ Continuous / Touch-On / OFF ] |
|
Safety |
: Over-Current Cut-Off |
|
Material |
: Body - Epoxy Powder Coated Aluminum Casting |
|
|

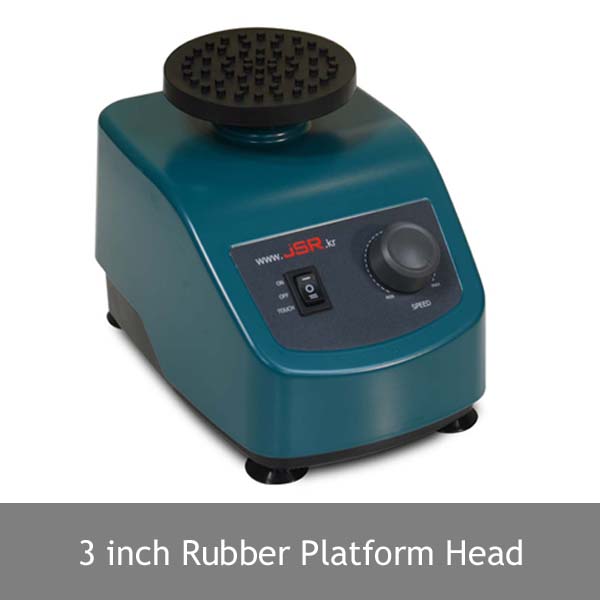

: 3 inch Rubber Platform Head – Engineering Plastic/Synthetic Rubber |
|
|

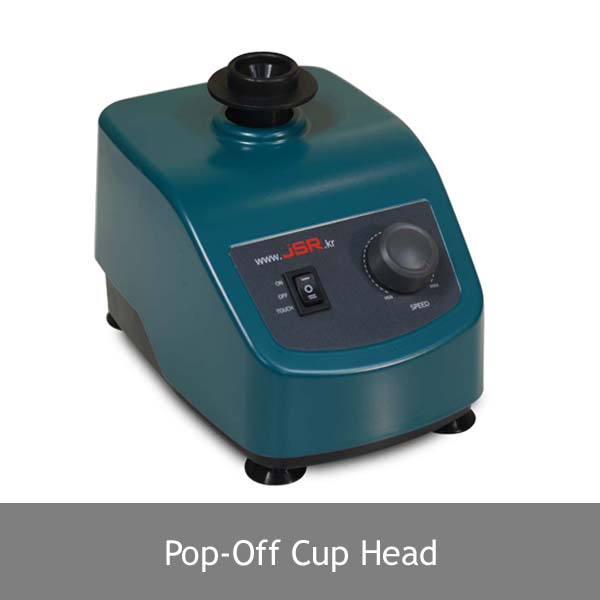

: Pop-Off Cup Head – Engineering Plastic |
|
|
: Remove Applicator – Engineering Plastic |
|
Electric |
: 230±10% VAC 50Hz 1-Phase or 230±10% VAC 60Hz 1-Phase |
|
Plug config. |
: CEE 7/7 Schuko or BS 1363 |
Model
|
Art No. |
||
|
Shaking Speed |
Range |
0 to 3,300 rpm |
|
|
Motion |
Orbital |
|
|
Stroke |
4 mm |
|
Control |
Type |
Stepless variable speed control |
|
|
Switch |
Multi-Position Continuous, Touch ON, Off |
|
|
Motor |
Brushless Shade Motor |
|
Max. Load & Power |
0.5 kgs, 30 watt |
|
|
Dimensions |
Main Body |
W130 x D190 x H120 mm |
|
|
3” Platform |
86 mm (3 inch) |
|
|
Pop-Off Cup Head |
50 mm |
|
Material |
Main Body |
Aluminum Casting /w Powder Coating |
|
|
3” Platform |
Engineering plastic, rubber |
|
|
Pop-Off Cup Head |
Engineering plastic |
|
Applicable Container |
All kind of micro tubes or conical tubes |
|
|
Safety |
Over Current Cut-Off |
|
|
Electrical Requirement |
220±10% VAC 50Hz 1-Phase or 220±10% VAC 60Hz 1-Phase |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|
Features
|
Controller |
|
Stepless variable speed control up to maximum 3,300 rpm Three (3) Position Multi-Function Switch allows “Continuous”, “Touch ON” and “Off” control
|
|
Construction |
|
Durable aluminum casting main body with epoxy powder coating Suction-Cup type Feet provide strong and stable attachment on the table surface and reduce vibration
|
|
Performance |
|
Speed control to 3,300 rpm
|
|
Convenience |
|
Various choice of attachments included
|
|
Safety |
|
OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSVX-7R1 |
Vortex Mixer including 1 ea x 3 inch Rubber Platform Head 1 ea x Pop-Off Cup Head 1 ea x Remove Applicator |
220 VAC 50 Hz |
2.4 kg |
2.9 kg |
|
JSVX-7R2 |
Vortex Mixer including 1 ea x 3 inch Rubber Platform Head 1 ea x Pop-Off Cup Head 1 ea x Remove Applicator |
220 VAC 60 Hz |
2.4 kg |
2.9 kg |
|
Accessories |
|||
|
Art No. |
|
Descriptions |
|
|
PHA-01V |
|
3 inch Rubber Platform Head |
|
|
PHA-02V |
|
Pop-Off Cup Head |
|
|
PHA-03V |
|
Remove Applicator |
|
