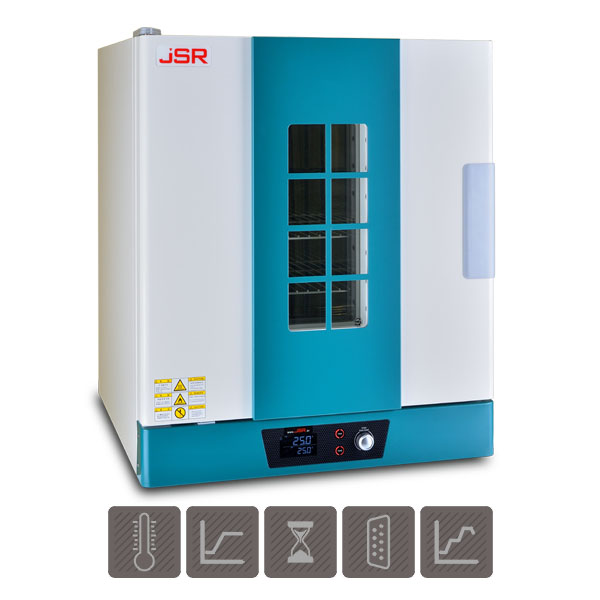

Natural Convection Oven
Common Specifications
|
Heating System |
Gravity Air Convection |
|
Temp. Range |
ambient + 10 oC ~ 250 oC |
|
Accuracy |
± 0.3 oC at 120 oC (JSON-050) |
|
Uniformity |
± 2.0 oC at 120 oC (JSON-050) |
|
Controller |
Microprocessor PID Control Auto START / STOP Timer |
|
|
3-Zone Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Insulation – 50mm thick woven mineral wool |
|
|
including stainless steel wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electrical Data |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |

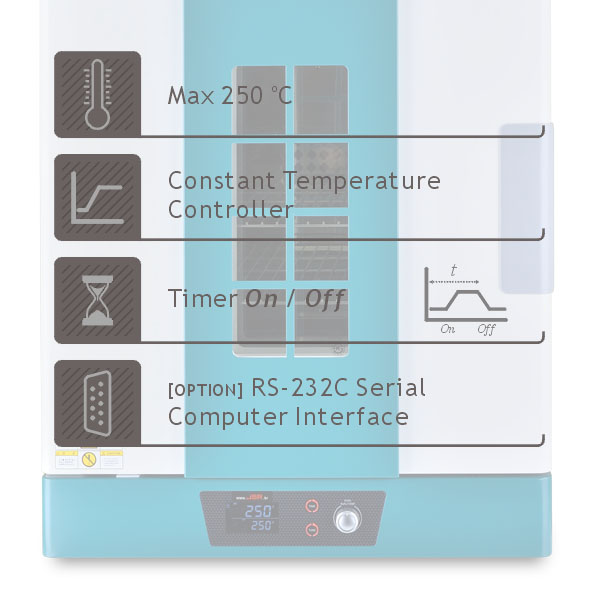

Features
 |
||
 |
 |
 |
|

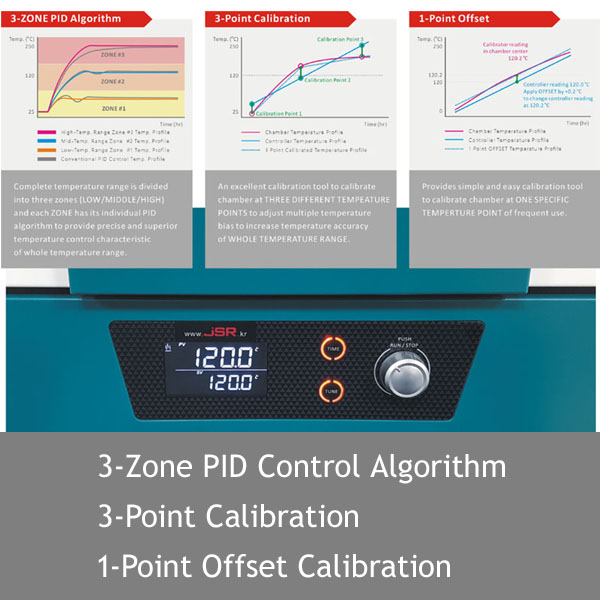

Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
An excellent calibration tool to calibrate chamber at THREE DIFFERENT TEMPEATURE POINTS to adjust multiple TEMPERTURE BIAS to increase temperature accuracy of whole temperature range. |
Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use.
|
|
Performance |
|
- Control Temperature Range from ambient+10 oC to 250 oC - Natural (Gravity) air convection for drying applications of fine powder and/or glassware - Asymmetrically designed heating system enhances mild and uniform hot air circulation for better temperature uniformity - 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Controller |
|
- DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System - GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information - UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability - ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface - 0.1 oC CONTROL RESOLUTION - TURN-ON TIMER up to 99 hour 59 min and alarm - TURN-OFF DELAY TIMER up to 99 hour 59 min and alarm - Temperature and Timer Memory Function in frequent use - 3-ZONE PID ALGORITHM - 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION - POWER and TIMER RESTORE FUNCTION in case electric power outage - CLASS A PT-100 Ω Sensor - RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|
- Durable epoxy powder coated metallic casing - Corrosion resistant Stainless Steel 304 chamber - Double layered glass window for easy observation of samples - Ventilation damper
|
|
Convenience |
|
- Double layered tempered safety glass window for easy observation of samples - Removable and height adjustable shelf by 25mm spacing - Easy-to-open and air-tight one touch door latch - Opening size adjustable ventilation damper - Door switch cut-off heater and blower to protect user from exposure to hot air
|
|
Safety |
|
- DOOR SENSOR WITH DOOR OPEN AUDIO VISUAL ALARM - MAXIMUM TEMPERATURE LIMIT SETTING, CUT-OFF HEATER AND AUDIO VISUAL ALARM - DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller Program cut-off heater and AUDIO VISUAL ALARM in case +10 oC above set temperature Independent analog thermostat cut-off heater 10% above set temperature - HIGH TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - LOW TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM - OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|

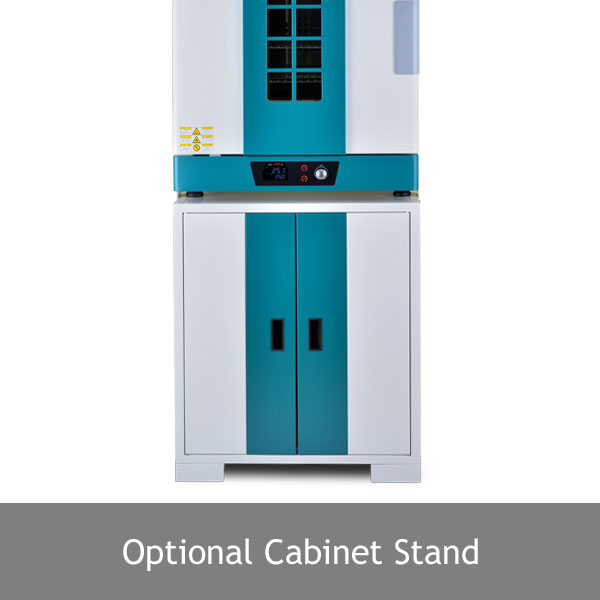

| Controller | Cabinet Stand [OPTION] | Door window | ||
 |
 |
 |
||

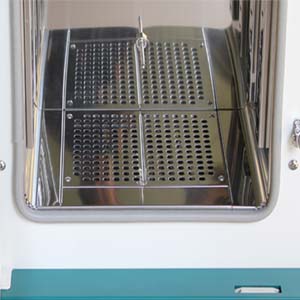

| Chamber | Adjustable Shelf | Safety | ||
 |
 |
 |
Models
|
Art. No. |
||||
|
Dimension Data |
|
|
|
|
|
Chamber Volume |
48 Liters |
100 Liters |
151 Liters |
252 Liters |
|
Inner Dims. (W x D x H mm) |
400 x 300 x 400 |
500 x 400 x 500 |
560 x 450 x 600 |
600 x 600 x 700 |
|
Outer Dims. (W x D x H mm) |
560 x 525 x 710 |
660 x 625 x 810 |
720 x 675 x 910 |
760 x 825 x 1010 |
|
Window Dims. (W x H mm) |
150 x 290 |
150 x 360 |
150 x 410 |
150 x 460 |
|
No. of Shelf Positions |
12 ea |
16 ea |
20 ea |
24 ea |
|
No. of Shelf included |
2 ea |
2 ea |
2 ea |
3 ea |
|
No. of Ventilation Damper |
1 ea |
1 ea |
1 ea |
1 ea |
|
|
|
|
|
|
|
Performance Data |
|
|
|
|
|
Heating System |
Natural (Gravity) Air Convection |
|||
|
Temp. Range |
Amb. +10 oC ~ +250 oC |
|||
|
Accuracy at 120 oC |
±0.3 oC |
±0.3 oC |
±0.5 oC |
±0.5 oC |
|
Uniformity at 120 oC |
±2.0 oC |
±3.0 oC |
±3.0 oC |
±4.0 oC |
|
Heat up time to 120 oC |
10 min. |
10 min. |
15 min. |
20 min. |
|
|
|
|
|
|
|
Electrical Data |
|
|
|
|
|
Rated voltage |
230 ± 10% VAC |
|||
|
Power frequency |
50 / 60Hz |
|||
|
Heater Output |
1.2 kW |
1.5 kW |
1.7 kW |
2.5 kW |
|
Nominal power |
1.3 kW 5.5 amp |
1.6 kW 6.8 amp |
1.8 kW 7.7 amp |
2.6 kW 11.3 amp |
|
Phase |
1 Phase |
|||
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|||
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSON-050 |
Natural Convection Oven, 48 L including standard accessories 2 ea x Wire Shelf, Stainless Steel 304 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
|
JSON-100 |
Natural Convection Oven, 100 L including standard accessories 2 ea x Wire Shelf, Stainless Steel 304 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
|
JSON-150 |
Natural Convection Oven, 151 L including standard accessories 2 ea x Wire Shelf, Stainless Steel 304 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
|
JSON-250 |
Natural Convection Oven, 252 L including standard accessories 3 ea x Wire Shelf, Stainless Steel 304 12 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A03 |
for JSON-050 W370 x D280 mm |
|
PHS-A05 |
for JSON-100 W470 x D380 mm |
|
PHS-A07 |
for JSON-150 W530 x D430 mm |
|
PHS-A09 |
for JSON-250 W570 x D580 mm |
|
Art No. |
Wire Shelf, Stainless Steel 304 |
|
PHS-B03 |
for JSON-050 W370 x D280 mm |
|
PHS-B05 |
for JSON-100 W470 x D380 mm |
|
PHS-B07 |
for JSON-150 W530 x D430 mm |
|
PHS-B09 |
for JSON-250 W570 x D580 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
|
Art No. |
Cabinet Stand with Caster |
|
PHC-050 |
for JSON-050 |
|
PHC-100 |
for JSON-100 |
|
PHC-150 |
for JSON-150 |
|
PHC-250 |
for JSON-250 |
